Connect Redshift, PostgreSQL, and AlloyDB

The following fields are required when creating a Postgres, Redshift, or AlloyDB connection:

Field	Description	Examples
Host Name	The hostname of the Postgres, Redshift, or AlloyDB database to connect to. This can either be a hostname or an IP address.	xxx.us-east-1.amazonaws.com or hostname.us-east-1.redshift.amazonaws.com or workgroup-name.123456789.us-east-1.redshift-serverless.amazonaws.com
Port	Usually 5432 (Postgres) or 5439 (Redshift)	5439
Database	The logical database to connect to and run queries against.	analytics

Note: When you set up a Redshift or Postgres connection in dbt Cloud, SSL-related parameters aren't available as inputs.

Configuring a Redshift connection

Authentication Parameters

For authentication, dbt Cloud users can use either a Database username and password, or they can now use IAM User authentication to Redshift via extended attributes.

Database

The following table contains the parameters for the database (password-based) connection method.

Field	Description	Examples
user	Account username to log into your cluster	myuser
password	Password for authentication	_password1!

IAM User

On Cloud, the IAM user authentication is currently only supported via extended attributes. Once the project is created, development and deployment environments can be updated to use extended attributes to pass the fields described below, as some are not supported via textbox.

You will need to create an IAM User, generate an access key, and either:

• on a cluster, a database user is expected in the user field. The IAM user is only leveraged for authentication, the database user for authorization
• on Serverless, grant permission to the IAM user in Redshift. The user field is ignored (but still required)
• For both, the password field will be ignored.

Profile field	Example	Description
method	IAM	use IAM to authenticate via IAM User authentication
cluster_id	CLUSTER_ID	Required for IAM authentication only for provisoned cluster, not for Serverless
user	username	User querying the database, ignored for Serverless (but still required)
region	us-east-1	Region of your Redshift instance
access_key_id	ACCESS_KEY_ID	IAM user access key id
secret_access_key	SECRET_ACCESS_KEY	IAM user secret access key

Example Extended Attributes for IAM User on Redshift Serverless

To avoid pasting secrets in extended attributes, leverage environment variables:

~/.dbt/profiles.yml

host: my-production-instance.myregion.redshift-serverless.amazonaws.com
method: iam
region: us-east-2
access_key_id: '{{ env_var(''DBT_ENV_ACCESS_KEY_ID'') }}'
secret_access_key: '{{ env_var(''DBT_ENV_SECRET_ACCESS_KEY'') }}'

Both DBT_ENV_ACCESS_KEY_ID and DBT_ENV_SECRET_ACCESS_KEY will need to be assigned for every environment leveraging extended attributes as such.

Connecting via an SSH Tunnel

To connect to a Postgres, Redshift, or AlloyDB instance via an SSH tunnel, select the Use SSH Tunnel option when creating your connection. When configuring the tunnel, you must supply the hostname, username, and port for the bastion server.

Once the connection is saved, a public key will be generated and displayed for the Connection. You can copy this public key to the bastion server to authorize dbt Cloud to connect to your database via the bastion server.

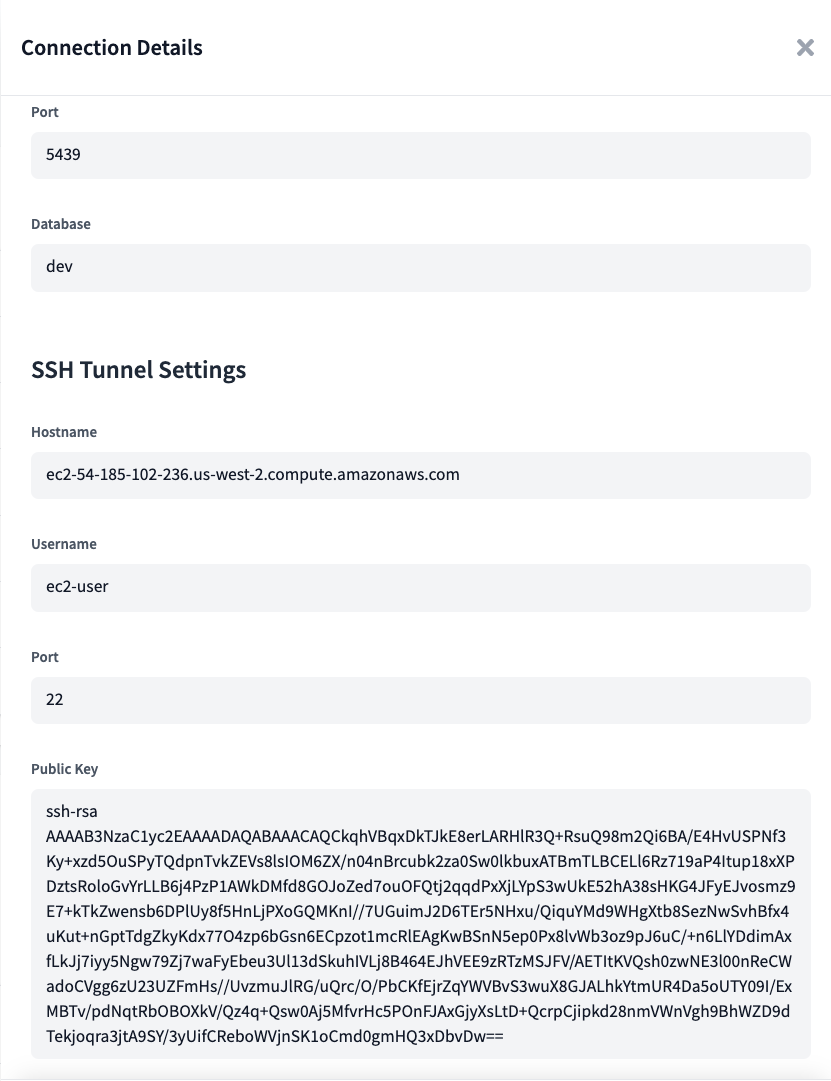

A generated public key for a Redshift connection

About the Bastion server in AWS

What is a Bastion server?

A bastion server in Amazon Web Services (AWS) is a host that allows dbt Cloud to open an SSH connection.

dbt Cloud only sends queries and doesn't transmit large data volumes. This means the bastion server can run on an AWS instance of any size, like a t2.small instance or t2.micro.

Make sure the location of the instance is the same Virtual Private Cloud (VPC) as the Redshift instance, and configure the security group for the bastion server to ensure that it's able to connect to the warehouse port.

Configuring the Bastion Server in AWS

To configure the SSH tunnel in dbt Cloud, you'll need to provide the hostname/IP of your bastion server, username, and port, of your choosing, that dbt Cloud will connect to. Review the following steps:

• Verify the bastion server has its network security rules set up to accept connections from the dbt Cloud IP addresses on whatever port you configured.
• Set up the user account by using the bastion servers instance's CLI, The following example uses the username dbtcloud:

sudo groupadd dbtcloud
sudo useradd -m -g dbtcloud dbtcloud
sudo su - dbtcloud
mkdir ~/.ssh
chmod 700 ~/.ssh
touch ~/.ssh/authorized_keys
chmod 600 ~/.ssh/authorized_keys

• Copy and paste the dbt Cloud generated public key, into the authorized_keys file.

The Bastion server should now be ready for dbt Cloud to use as a tunnel into the Redshift environment.

Configuration

To optimize performance with data platform-specific configurations in dbt Cloud, refer to Redshift-specific configuration.

To grant users or roles database permissions (access rights and privileges), refer to the Redshift permissions page or Postgres permissions page.

FAQs

 Database Error - could not connect to server: Connection timed out

When setting up a database connection using an SSH tunnel, you need the following components:

• A load balancer (like ELB or NLB) to manage traffic.
• A bastion host (or jump server) that runs the SSH protocol, acting as a secure entry point.
• The database itself (such as a Redshift cluster).

dbt Cloud uses an SSH tunnel to connect through the load balancer to the database. This connection is established at the start of any dbt job run. If the tunnel connection drops, the job fails.

Tunnel failures usually happen because:

• The SSH daemon times out if it's idle for too long.
• The load balancer cuts off the connection if it's idle.
• dbt Cloud tries to keep the connection alive by checking in every 30 seconds, and the system will end the connection if there's no response from the SSH service after 300 seconds. This helps avoid drops due to inactivity unless the Load Balancer's timeout is less than 30 seconds.

Bastion hosts might have additional SSH settings to disconnect inactive clients after several checks without a response. By default, it checks three times.

To prevent premature disconnections, you can adjust the settings on the bastion host:

• ClientAliveCountMax — Configures the number of checks before deciding the client is inactive. For example, ClientAliveCountMax 10 checks 10 times.
• ClientAliveInterval — Configures when to check for client activity. For example, ClientAliveInterval 30 checks every 30 seconds. The example adjustments ensure that inactive SSH clients are disconnected after about 300 seconds, reducing the chance of tunnel failures.
